360W Integrated Mixer Amplifier
The Inter-M PM236 is a 360W multi-purpose desktop mixer amplifier. The PM236 multi-purpose integrated mixer amplifier features multiple inputs (3 x…
- Class-D amplifier 360W output power
- HIGH-Z (100V / 70V) and Low-Z (8Ω / 4Ω)
- Multiple inputs (three microphones / lines, two lines, two stereo / line inputs, such in, USB) and a function to control the volume of each channel
- Ext in and Mix out
Features
- Class-D amplifier 360W output power
- HIGH-Z (100V / 70V) and Low-Z (8Ω / 4Ω)
- Multiple inputs (three microphones / lines, two lines, two stereo / line inputs, such in, USB) and a function to control the volume of each channel
- Ext in and Mix out
- Display of the input signal controlled by the channel and the level of the output LED
- Tone control (severe / acute)
- 5 Switches (zone selection switch)
- Broadcasting in priority
- External sound cut and external carillon
- Chime and siren
- Compatible with RM-05A paging microphone console
Product Description

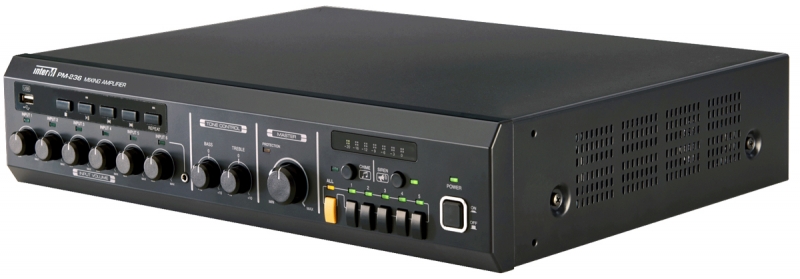

The Inter-M PM236 is a 360W multi-purpose desktop mixer amplifier.
The PM236 multi-purpose integrated mixer amplifier features multiple inputs (3 x microphone/line, 2 x line and 2 x stereo line), plus USB and individual volume control for each channel.
This amplifier features a telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset.
VOX priority override is available on inputs 1 and 2 as well as the telephone input.
Applications: Education facilities: School, College, University, Training Rooms, etc.
Commercial: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc Public facilities: Government offices, transportation, stations, airport terminals, exhibition halls, factories, resorts, etc.
The higher output amplifiers use Inter-M's Class-D amplifier technology.
The PM236 Integrated Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music (BGM), paging and public address (PA).
