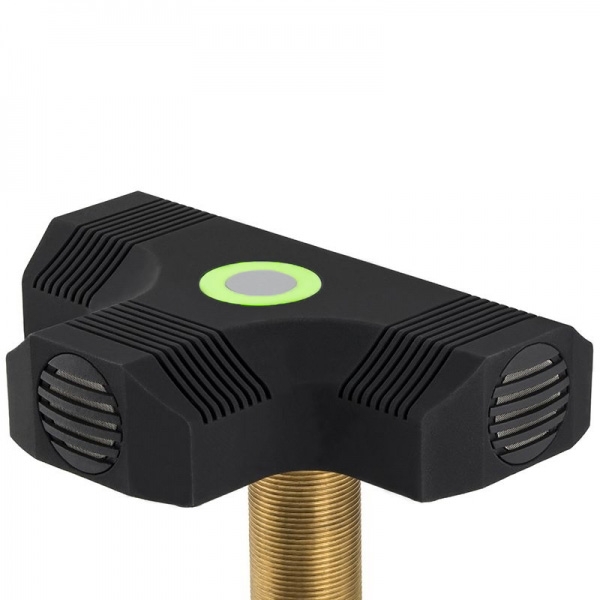

3 Element Boundary Layer Microphone with programmable RGB LED Touch Switch. Black

The Clockaudio CS3S-RFRGB is a triple element Boundary Series microphone with a half cardioid polar pattern. The microphone is fitted with an RGB electronic capacitive touch sensitive switch.

RGB electronic capacitive touch switch facilitating click/pop free switching.
Programmable via a DSP to display up to seven colour combinations and operate in PTT, PTM or Latching modes.
Works only in conjunction with supplied TS-C1 touch switch controller that accepts 6 way colour coded ribbon cable from RGB LEDs, a 2 way phoenix connector for connection to the reed switch and TS-OUT for connection to DSP via CAT-5 Ethernet cable.
Half cardioid polar pattern.
Balanced output that is immune to RF artifacts.
Power requirements 9 - 48V phantom power.
Cable 2m 6 core + screen.

Features

RGB electronic capacitive touch switch facilitating click/pop free switching.

Programmable via a DSP to display up to seven colour combinations and operate in PTT, PTM or Latching modes.

Works only in conjunction with supplied TS-C1 touch switch controller that accepts 6 way colour coded ribbon cable from RGB LEDs, a 2 way phoenix connector for connection to the reed switch and TS-OUT for connection to DSP via CAT-5 Ethernet cable.

Half cardioid polar pattern.

Balanced output that is immune to RF artifacts.

Power requirements 9 – 48V phantom power.

Cable 2m 6 core + screen.

Product Description

The Clockaudio CS3S-RFRGB is a triple element Boundary Series microphone with a half cardioid polar pattern. The microphone is fitted with an RGB electronic capacitive touch sensitive switch. This means the LED light can be programmed to any RGB colour for example to match corporate branding colours.

The CS3S-RFRGB was developed to minimise the number of Microphones on the conference table whilst maintaining high performance and ease of installation.

Programmable RGB LEDs can be matched to any colour within the RGB spectrum:

The CS3S-RFRGB model features 3 microphone elements, each with a half-cardioid polar pattern and, therefore, is ideal for 270 degree pick-up; for instance, positioned on the end of a boardroom table for voice pick-up of people positioned front, left and right.

The CS3SRFRGB is supplied fitted with a 2 metre cable (with open-ended termination) and 4 integral Phantom Power adapters which accept 9 to 48 volts DC.

This professional Boundary Microphone also includes RF immunity filters which eliminate the unwanted noise and interference caused by the GSM frequencies emitted by handheld / wireless devices such as smartphones.
