240W AMPLIFIER

InterM PA224 240 watt 100v line/low impedance integrated mixer amplifier with 6 inputs, telephone input and 5 zone speaker selection.

2u high Class-D Amplifier 240W output
High-Z (100V/70V) and low-Z (8Ω/4Ω
Multiple inputs (three mic/line, two line, two stereo/line inputs, tel in, usb) and a feature for controlling the volume of each channel
EXT In and MIX Out
Displaying input signal led by channel and output led level
Tone control (bass/treble)
5 zone selection switches
Broadcasting in priority
TEL IN > INPUT 1 > INPUT 2 = INPUT 3 = INPUT 4 = INPUT 5 = INPUT 6
External mute and external chime
Chime and siren

Features

2u high Class-D Amplifier 240W output

High-Z (100V/70V) and low-Z (8Ω/4Ω

Multiple inputs (three mic/line, two line, two stereo/line inputs, tel in, usb) and a feature for controlling the volume of each channel

EXT In and MIX Out

Displaying input signal led by channel and output led level

Tone control (bass/treble)

5 zone selection switches

Broadcasting in priority

TEL IN > INPUT 1 > INPUT 2 = INPUT 3 = INPUT 4 = INPUT 5 = INPUT 6

External mute and external chime

Product Description

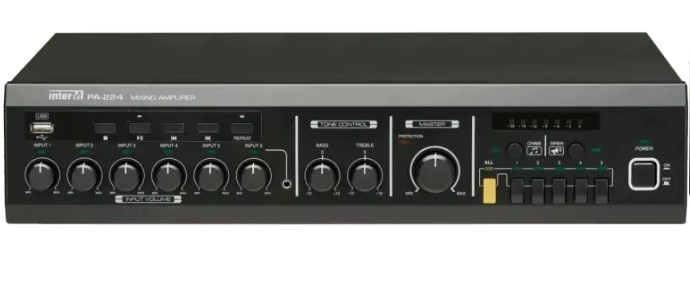

The Inter-M PA224 is a professional 240 watt integrated mixer amplifier for both 100v line and low impedance loudspeaker systems.

The PA224 Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music, paging and public address.

The PA224 multi-purpose integrated mixer amplifier features multiple inputs:

3 Microphone/Line
2 Line
2 Stereo/ Line inputs, USB and a function to control the volume of each channel

This amplifier features a telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset. VOX priority override is available on inputs 1 and 2 as well as the telephone input.

Applications:

Education facilities: School, College, University, Training Institute, etc.
Commercial: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc
Public facilities: Government offices, transportation, stations, airport terminals, exhibition halls, factories, resorts, etc.

The PA224 Integrated Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music (BGM), paging and public address (PA).

Specification
