2 x HDMI, 1 x VGA over Single CAT5e/6/7 HDBaseT Table-Top Transmitter (Single LAN & PoH up to 100m)

CYP17536

2 x HDMI, 1 x VGA over Single CAT5e/6/7 HDBaseT Table-Top Transmitter (Single LAN & PoH up to 100m)

The PUV-1630TTX 2x HDMI & 1x VGA HDBaseT Table-top Transmitter is a versatile and extremely portable solution to AV presentations on the go.

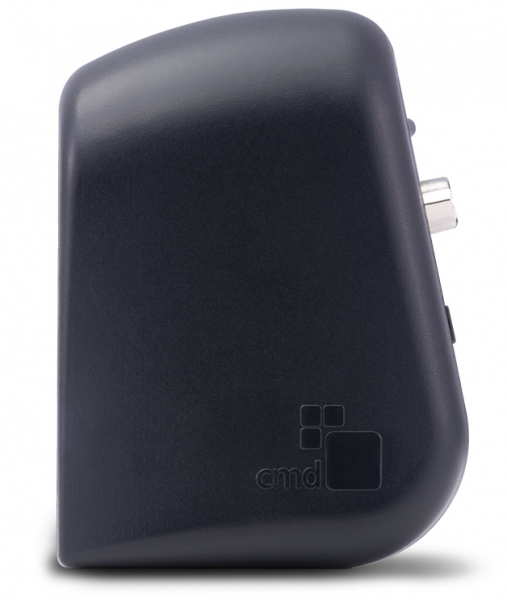

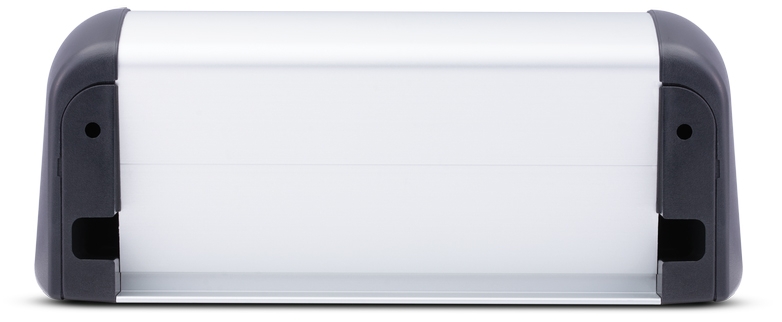

Supplied complete with the CMD 'Contour' unit, and C Clamp for table-top fixing
HDBaseT: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT)
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 Compliant
2 x HDMI Input
1 x VGA Input with 3.5mm mini-jack analogue audio input
Automatic conversion of 4K @ 50/60Hz HDMI sources to 4K@30Hz (4:4:4 8-Bit) for transmission over HDBaseT
Supports VGA input resolutions up to WUXGA (RGB)
PoH (Power over HDBaseT) support
Auto Switching & CEC Control

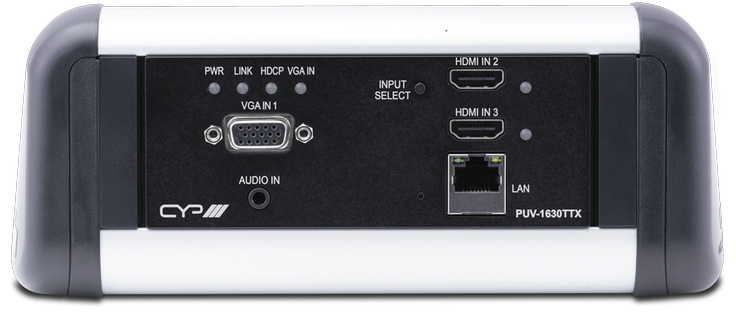

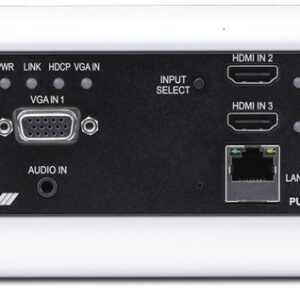

Front panel push button control & front panel LEDs to indicate input selection, link status and power

Features

Supplied complete with the CMD ‘Contour’ unit, and C Clamp for table-top fixing

HDBaseT: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT)

HDMI 2.0 and DVI 1.0 compatible

HDCP 2.2 Compliant

2 x HDMI Input

1 x VGA Input with 3.5mm mini-jack analogue audio input

Automatic conversion of 4K @ 50/60Hz HDMI sources to 4K@30Hz (4:4:4 8-Bit) for transmission over HDBaseT

Supports VGA input resolutions up to WUXGA (RGB)

PoH (Power over HDBaseT) support

Product Description

The PUV-1630TTX 2x HDMI & 1x VGA HDBaseT Table-top Transmitter is a versatile, portable solution to AV presentations and connectivity on the go.

CYP developed this HDBaseT Transmitter & Switcher, the PUV-1630TTX, where no pre-installation is necessary, to allow fast, simple connectivity and transmission of multiple AV devices over HDBaseT.

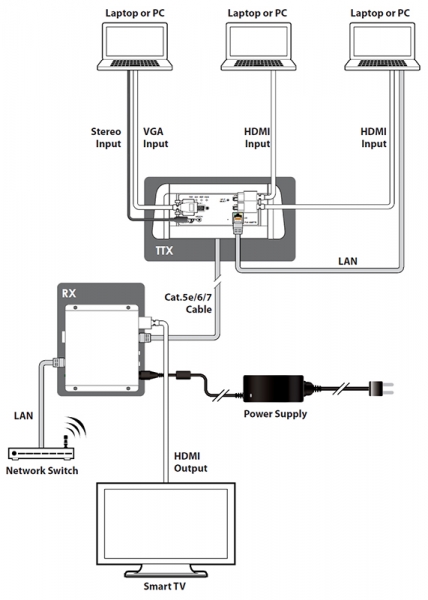

The PUV-1630TTX is adaptable and easy to use, with 2x HDMI, 1x VGA signal inputs over a single Cat5e/6/7 cable which additionally serves for embedding analogue audio and LAN over the same Cat cable. All of which allows uncompressed signals to be transmitted up to a distance of 100m to a compatible receiver from the PUV-1600 range.

Included is an easy-to-use software which will allow the user to set timing delays on the screen used when unplugging and plugging back in devices between presentations. This would allow the screen never to go blank whilst awaiting the next user to plug in, making for a much smoother and professional presentation.

Any connected device to the PUV-1630TTX Desktop Transmitter may be controlled through the Consumer Electronics Control (CEC). Once connected, the correct HDMI or VGA input channel can then be selected via the WebGUI or remote control to the display unit.

The hot plug detection enables automatic input detection for hands-free control and the push buttons on the front of the unit allows for ease of use.

The PUV-1630TTX has a HDBaseT bandwidth limit of 10.2Gbps but will automatically convert any higher bandwidths, such as HDMI 4KUHD, to be compatible with the system.

The PUV-1630TTX is powered by the PoH of the connected receiver from the PUV-1600 range.
