2 to 8 HDMI Distribution Amplifier & Switcher with System Reset

CYP17051

2 to 8 HDMI Distribution Amplifier & Switcher with System Reset

The QU-28S-4K22 is an advanced signal distribution device giving elite sound and video support including HDR and different features defined by the HDMI 2.0a specification.

HDMI 4K HDR, 18Gbps, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP Backwards Compatible
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
8 output HDMI splitter with 2 selectable inputs and automatic input switching support
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
Independent output selection, 4K to 1080p down-scaling/color space conversion (4:4:4 to 4:2:0)
Independent HDCP management engine for each output ensures stable performance
Supports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDs
Support for the CEC System Reset
Front-panel control buttons with OSD and RS-232

Features

HDMI 4K HDR, 18Gbps, 3D & 4K@60Hz support, DVI 1.0 compatible

HDCP 2.2 and HDCP Backwards Compatible

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals

8 output HDMI splitter with 2 selectable inputs and automatic input switching support

Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats

Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats

Independent output selection, 4K to 1080p down-scaling/color space conversion (4:4:4 to 4:2:0)

Independent HDCP management engine for each output ensures stable performance

Supports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDs

Product Description

The QU-28S-4K22 is an advanced 2 in / 8 Out HDMI Distribution Amplifier and Switcher with superior sound and video support including HDR and different features defined by the HDMI 2.0a specification.

4K HDR video sources, up to/ including 4K@60Hz (4:4:4, 8-bit) and in addition 10/12-bit sources with HDR, can be circulated over the 8 outputs. Pass through of different digital sound formats, for example, LPCM 7.1, Bitstream and progressed HD Bitstream with sound sampling rates up to 192kHz are likewise supported.

An independent HDCP management engine for each output guarantees stable HDCP execution/performance.

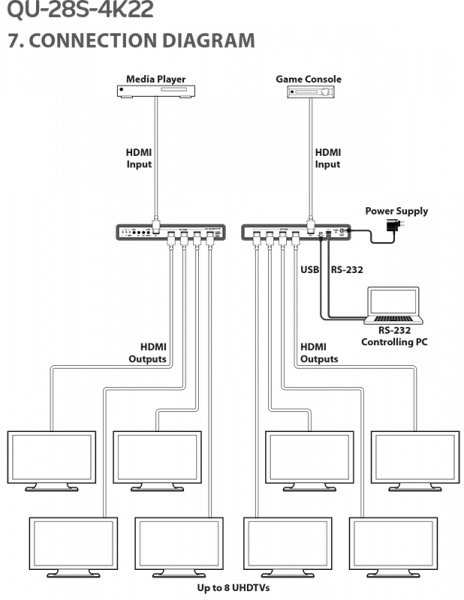

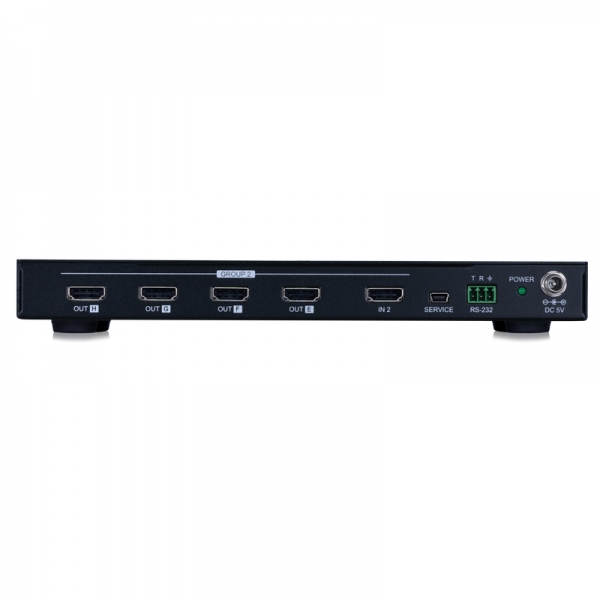

This CYP QU-285-4K22 Distribution Amplifier additionally incorporates a special “Group Mode” which enables the unit to work as two independant 1×4 splitters. At the point when Group Mode is utilised, every one of the 2 HDMI inputs are steered to their own discrete set of 4 outputs.

At the point when a mixture of displays with various specifications are associated, each output can be configured to scale 4K to 1080p or apply colour space conversion (4:4:4 to 4:2:0), as needed. Support for the CEC “active source” can be enabled command to intermittently reset input choice on CEC compatible associated displays.

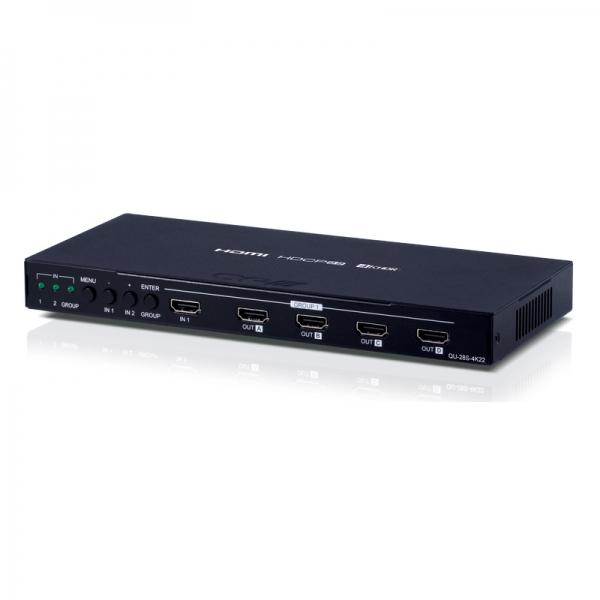

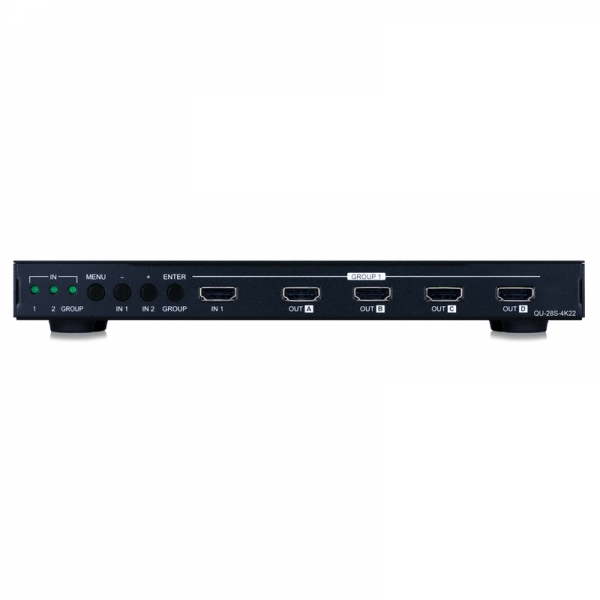

This unit gives an intuitive set of front panel controls with an OSD as well as RS-232 control alternatives.

Specification
