Inter-MP-DPA300S

1 x 300W Power Amplifier 2U

The Inter-M DPA300S is a 300W, 100v Line Class D Power Amplifier for professional PA, AV and background music installations and rackbuilds. Housed in…

  • Single channel, 300w output
  • Class-D High-efficiency, high power amplifier
  • 100v/70v selector
  • Only 2U rack height
Features
  • Single channel, 300w output
  • Class-D High-efficiency, high power amplifier
  • 100v/70v selector
  • Only 2U rack height

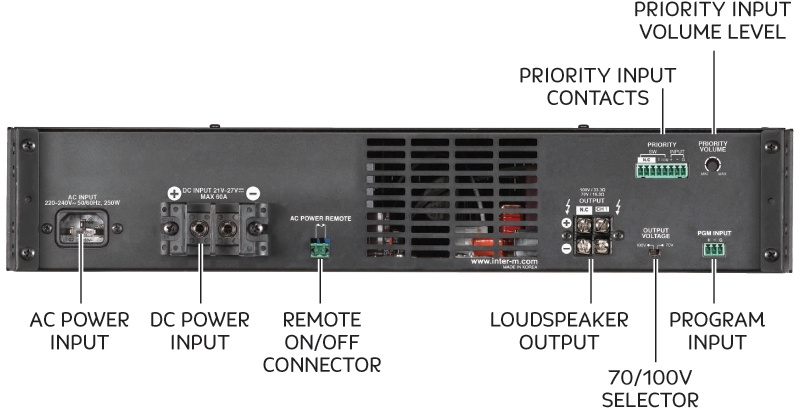

  • AC and DC power operation
  • Switch Mode power supply
  • Priority Function activated by voltage-free contact closure
  • Remote Power ON/OFF Control via control input

The Inter-M DPA300S is a 300W, 100v Line Class D Power Amplifier for professional PA, AV and background music installations and rackbuilds.

Housed in a discreet and compact 2U casing, this 100v line, single-channel Power Amplifier offers both size and weight reduction benefits.

The DPA300S features Class-D amplification circuitry and a switch mode power supply to provide significant efficiency improvements (typically up to 90% efficient compared to an average of 40% efficiency in conventional amplification).

This compact, professional power amplifier is ideal for large scale PA systems where high power is required over a long speaker line (such as shopping malls, supermarkets, school, colleges, airports, warehouses, etc).

The Class D amplifier offers power efficiency in excess of 90% and ensures low power consumption and significantly reduced heat dissipation.

Fully equipped with protection circuitry against short circuit, overload, power and DC output; Inter-M’s DPA Series amplifiers offer less than 1% THD, an increased signal to noise ratio of 90dB and a wider frequency response from 19Hz ~ 18KHz.

The DPA300S also provides Dual Input capabilities, allowing a priority input signal to override the standard/normal input signal; an ideal feature to support emergency paging systems.
