Inter-MP-PA212

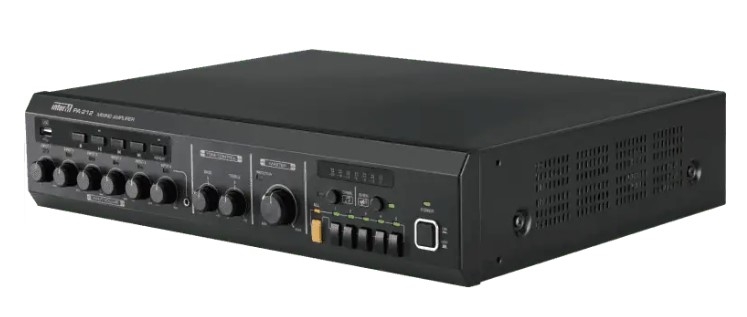

120W Integrated Mixer Amplifier

The Inter-M PA212 is a professional 120 watt integrated mixer amplifier for both 100v line and low impedance loudspeaker systems. The PA-212 Mixer…

  • Class-D Amplifier 120W output
  • High-Z (100V/70V) and low-Z (8Ω/4Ω
  • Multiple inputs (three mics/lines, two lines, two stereo/line inputs, tel in, usb) and a feature for controlling the volume of each channel
  • EXT in and MIX out
Features
  • Class-D Amplifier 120W output
  • High-Z (100V/70V) and low-Z (8Ω/4Ω
  • Multiple inputs (three mics/lines, two lines, two stereo/line inputs, tel in, usb) and a feature for controlling the volume of each channel
  • EXT in and MIX out
  • Displaying input signal led by channel and output led level
  • Tone control (bass/treble)
  • 5 switches (zone selection switch)
  • Broadcasting in priority
  • TEL IN > INPUT 1 > INPUT 2 = INPUT 3 = INPUT 4 = INPUT 5 = INPUT 6
  • External mute and external chime
  • Chime and siren

The Inter-M PA212 is a professional 120 watt integrated mixer amplifier for both 100v line and low impedance loudspeaker systems.

The PA-212 Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music, paging and public address.

The PA212 multi-purpose integrated mixer amplifier features multiple inputs (3 x microphone/line, 2 x line and 2 x stereo line), plus USB and individual volume control for each channel.

This amplifier features a telephone input terminal for connectivity to a standard phone system, allowing paging directly from a telephone handset.

VOX priority override is available on inputs 1 and 2 as well as the telephone input.

Applications: Education facilities: Elementary, High School, College, University, Training Institute, etc.
Commercial establishments: Department stores, Shopping centres, Multiplex cinemas, hospitals, etc Public facilities: Government offices, transportation, stations, airport terminals, exhibition halls, factories, resorts, etc.

The PA212 Integrated Mixer Amplifier can be desktop or rack mounted and is ideal for commercial audio applications such as background music (BGM), paging and public address (PA).
