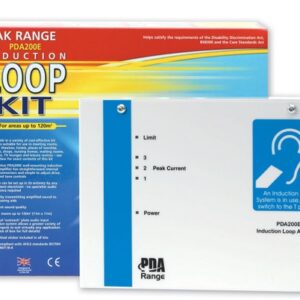

120m sq LOOP AMP (WALL MOUNT)

The PDA200E has revolutionised the induction loop marketplace by bringing the ability to understand, install and appreciate the technology involved to a whole new client base.

Ideal for meeting rooms, lecture theatres, churches, schools, TV lounges, shops and other small to medium sized applications.
Straightforward internal screw connectors
Wall mountable for permanent installation - ideal for schools and colleges where rooms are often left unsupervised
Internal tamper-resistant drive, level and tone controls
One balanced/unbalanced microphone input
One balanced/unbalanced line level input
Alert tone switch input for doorbells, fire alarms, security systems, etc
Fully automatic compressor-limiter
Compatible with SigNet's unique 'outreach plate' input extension system

Features

Ideal for meeting rooms, lecture theatres, churches, schools, TV lounges, shops and other small to medium sized applications.

Straightforward internal screw connectors

Wall mountable for permanent installation – ideal for schools and colleges where rooms are often left unsupervised

Internal tamper-resistant drive, level and tone controls

One balanced/unbalanced microphone input

One balanced/unbalanced line level input

Alert tone switch input for doorbells, fire alarms, security systems, etc

Fully automatic compressor-limiter

Product Description

The PDA200E has revolutionised the induction loop marketplace by bringing the ability to understand, install and appreciate the technology involved to a whole new client base.

Straight forward internal screw connectors and preset controls mean no specialist audio experience or audio connectors are required. By following the simple set-up procedure, no further adjustments are necessary, allowing a top quality assistive listening system for the hard of hearing to be set-up in its entirety by new and experienced installers alike.
No less than four easy-to-access inputs are provided:

Balanced/unbalanced mic (with phantom power for use with electret mics).
Balanced/unbalanced line (for the connection of TV and other audio feeds).
Alert tone switch (a tone generator for use with doorbells, fire alarms etc).

The amplifier’s state-of-the-art current drive audio processing circuitry includes an automatic compressor/limiter which maintains the loop signal within a small dynamic range to improve intelligibility.

Manual adjustment can also be made using the amplifier’s internal tamper resistant drive, level and tone controls, allowing the system to be tailed to suit the exact requirements of any room.

Specification
