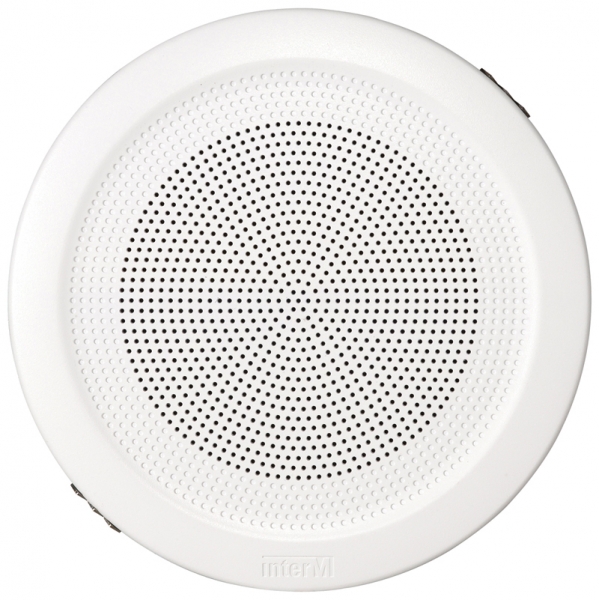

Inter-MP-CS510F

10W 5″ Ceiling Speaker

The Inter-M CS510F is a compact 10W, 100V line ceiling speaker designed for public address, background music and emergency broadcasting. Featuring a…

  • 5 inch, full-range ceiling speaker
  • White plastic front grille
  • Fast-fix installation
  • Simple, unobtrusive compact design
Features
  • 5 inch, full-range ceiling speaker
  • White plastic front grille
  • Fast-fix installation
  • Simple, unobtrusive compact design
  • Premium grade driver
  • Metal rear housing/enclosure
  • Tappings at 3, 5 and 10 watts

The Inter-M CS510F is a compact 10W, 100V line ceiling speaker designed for public address, background music and emergency broadcasting.

Featuring a 5-inch full-range driver, selectable 3W, 5W and 10W power taps, flame-retardant construction and a convenient clip-type mounting system, it offers reliable audio reproduction in commercial and residential installations.

The speaker requires a 150mm ceiling cut-out.

Specifications:

  • Speaker type: 5-inch, one-way ceiling speaker
  • Rated power: 10W
  • 100V power taps: 10 / 5 / 3W
  • Frequency range: 120Hz–18kHz (−20%)
  • Sensitivity: 86dB (1W/1m)
  • Maximum SPL: 98dB
  • Cut-out diameter: 150mm
  • Overall dimensions: Ø177 × 102mm
  • Weight: 0.69kg
  • Enclosure: white, flame-retardant HIPS
  • Grille: ivory, flame-retardant HIPS
