CYP12104

100M HDBASET TRANSMITTER

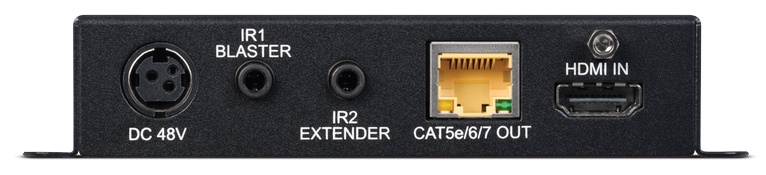

The PUV-1510TX HDBaseT Transmitter enables the transmission of 4K UHD, HD Audio, 2-wayIR, PoH (power-over-HDBaseT), RS-232 and LAN signals up to 100m.

Supports uncompressed video/audio up to 10.2Gbps
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
Supports HDCP repeating and CEC functions
1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
Supports 3D signals
HDCP2.2 Compliant
Supports 3D signals

Features

Supports uncompressed video/audio up to 10.2Gbps

4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7

Supports HDCP repeating and CEC functions

1080p signals can be transmitted up to 100m via CAT5e/6/6a/7

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

1080p signals can be transmitted up to 100m via CAT5e/6/6a/7

Supports 3D signals

HDCP2.2 Compliant

Supports 3D signals

Product Description

The new PUV-1510TX HDBaseT Transmitter is their latest generation HDBaseT extender system supporting the most recent AV standards in 4K UHD, HDCP2.2 and PoH (Power-over-HDBaseT).

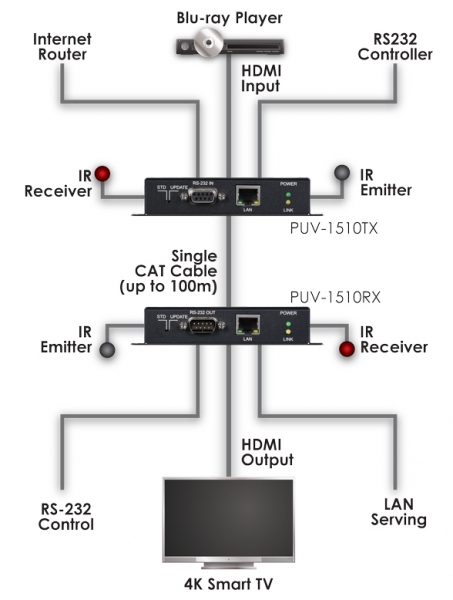

Designed for use in conjunction with the CYP PUV-1510RX Receiver, this HDBaseT Transmitter enables simultaneous transmission of 4K UHD video, HD audio, 2-way IR, PoH, RS-232 and 100BaseT Ethernet over stanard Category 5e/6/7 cable.

The PUV-1510TX/RX Kit supports transmission distances of up to 100 metres.

This HDBaseT Transmitter is designed for use in conjunction with the CYP PUV-1510RX Receiver.

• Find out more about HDCP 2.2 content protection:

• Find out more about 4K UHD Ultra-high Definition AV Content:

Specification
