CYP12103

100M HDBASET RECEIVER

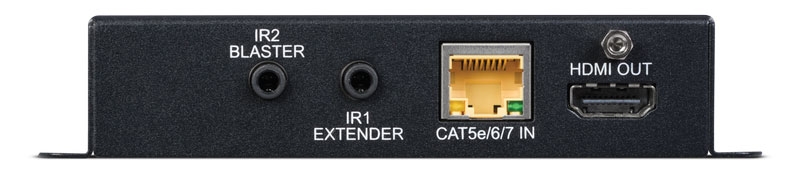

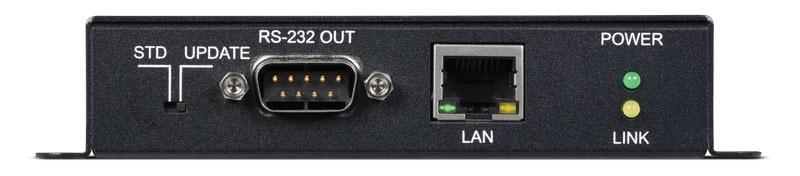

The PUV-1510RX HDBaseT Receiver enables the receipt of 4K UHD, HD audio, 2-wayIR, PoH (power-over-HDBaseT), RS-232 and LAN signals up to 100m.

HDCP2.2 Compliant
Supports uncompressed video/audio up to 10.2Gbps
Supports HDCP repeating and CEC functions
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)
Supports 3D signals

Features

HDCP2.2 Compliant

Supports uncompressed video/audio up to 10.2Gbps

Supports HDCP repeating and CEC functions

Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings

4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7

1080p signals can be transmitted up to 100m via CAT5e/6/6a/7

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)

Supports 3D signals

Product Description

The new PUV-1510RX HDBaseT Receiver is their latest generation HDBaseT extender system supporting the most recent AV standards in 4K UHD, HDCP2.2 and PoH (Power-over-HDBaseT).

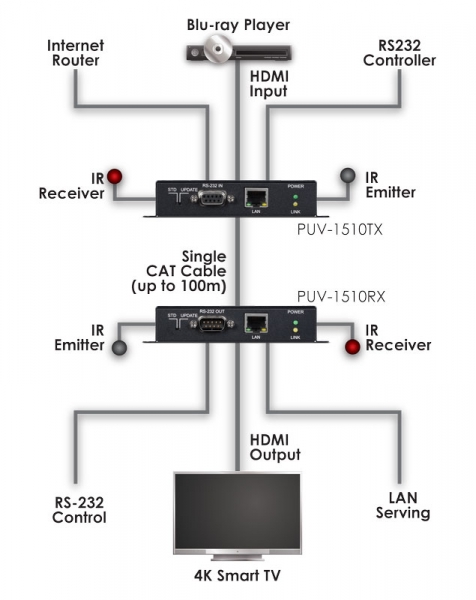

Designed for use in conjunction with the CYP PUV-1510TX Transmitter, this HDBaseT Receiver enables simultaneous transmission of 4K UHD video, HD audio, 2-way IR, PoH, RS-232 and 100BaseT Ethernet over stanard Category 5e/6/7 cable.

The PUV-1510TX/RX Kit supports transmission distances of up to 100 metres.

This HDBaseT Transmitter is designed for use in conjunction with the CYP PUV-1510TX Transmitter, as well as CYP’s latest generation PUV range of HDBaseT Matrices.

• Find out more about HDCP 2.2 content protection:

• Find out more about 4K UHD Ultra-high Definition AV Content:
