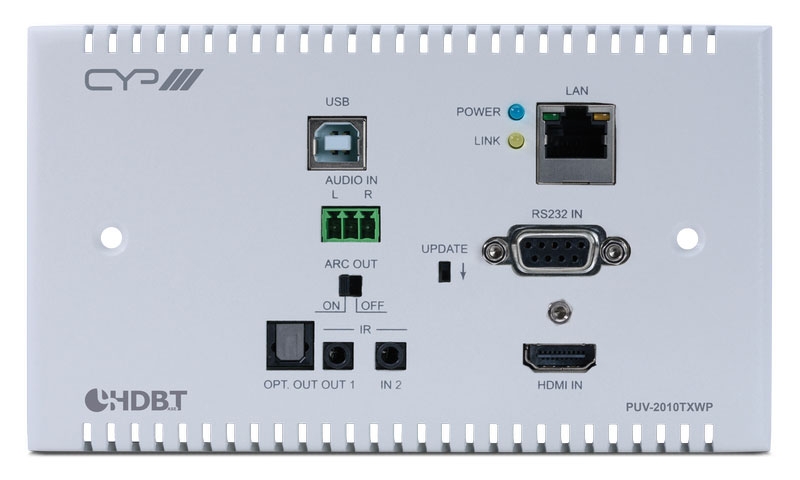

CYPP-PUV-2010TXWP

HDBaseT 2.0 Wallplate Transmitter

The versatile PUV-2010TXWP Wall Plate Transmitter enables transmission of 4K UHD video, HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and…

  • HDBaseT 2.0 transmitter in a UK double-gang wall plate
  • Up to 100m over Cat6a/7, 70m over Cat5e/6
  • 4K UHD with HDCP 2.2
  • HD audio pass-through including Dolby Atmos and DTS-HD MA
Features
  • HDBaseT 2.0 transmitter in a UK double-gang wall plate
  • Up to 100m over Cat6a/7, 70m over Cat5e/6
  • 4K UHD with HDCP 2.2
  • HD audio pass-through including Dolby Atmos and DTS-HD MA
  • Optical audio return (OAR) and audio return channel (ARC)
  • Analogue stereo audio input
  • USB 2.0 data to the receiver's 2 USB ports
  • Bi-directional IR and RS-232, LAN and PoH

The versatile PUV-2010TXWP Wall Plate Transmitter enables transmission of 4K UHD video, HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m.

The PUV-2010TXWP uses the latest HDBaseT 2.0 technology to provide advanced signal management to ensure reliable results in demanding installation environments.

The PUV-2010TXWP also incorporates Optical Audio Return (OAR) and Audio Return Channel (ARC) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter.

All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

This system also allows the connection of any USB host, enabling a USB 2.0 connection to 2 x 2 USB ports, giving the PUV-2010TXRP Receiver the ability to act like a USB hub.

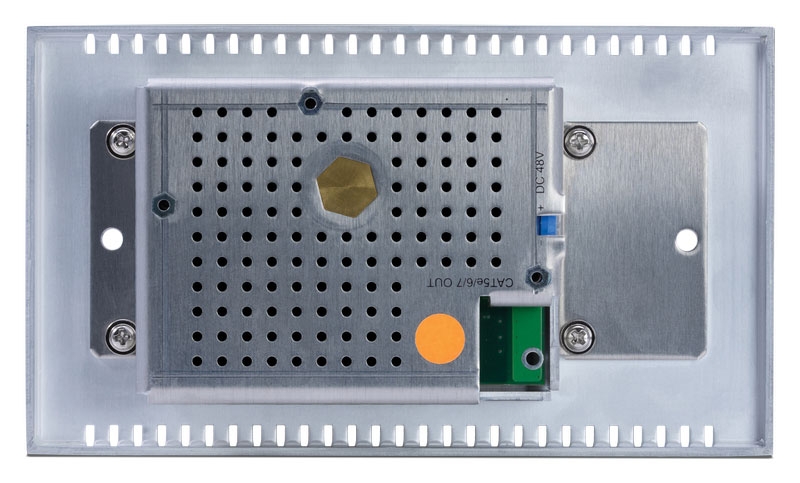

This wall plate variant of the PUV-2010TXWP Transmitter can be fitted into a standard UK double-gang back box.
