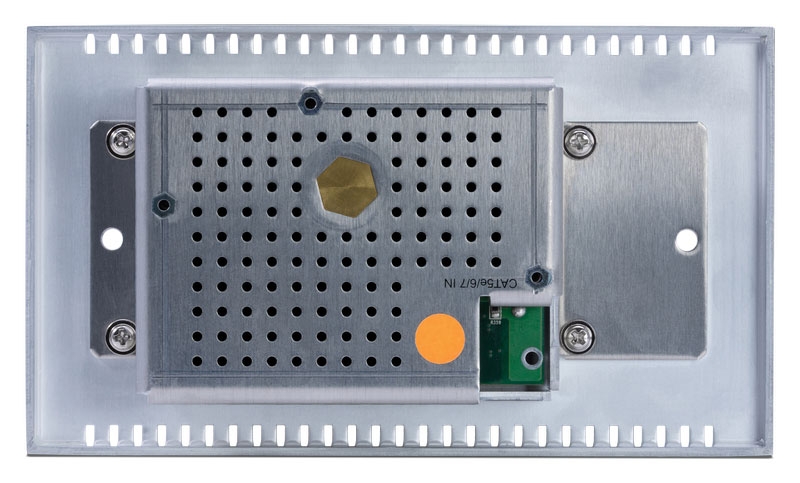

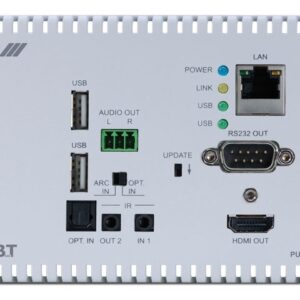

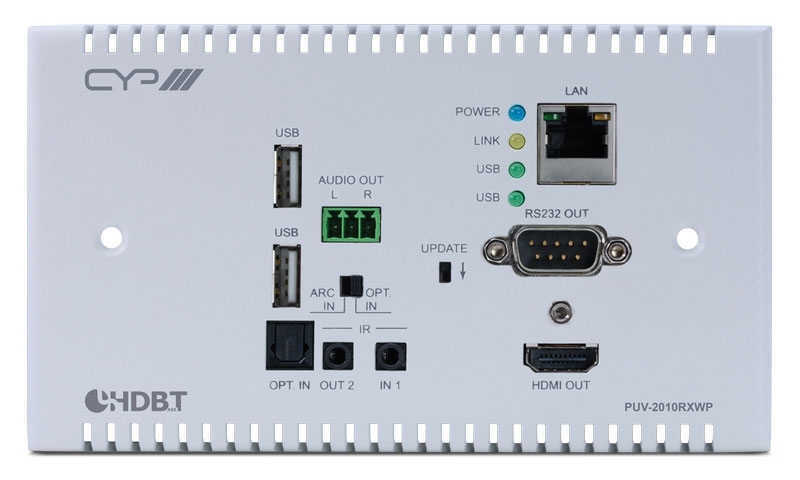

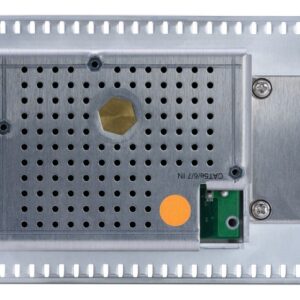

100m HDBaseT 2.0 Wall Plate Receiver (4K, HDCP2.2, PoH, LAN, OAR)
The PUV-2010RXWP UK Wall Plate Receiver supports 4K UHD video resolutions, HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals up to 100m.
- Supports full HDBaseT 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
- HDCP 2.2, HDMI and DVI compatible
- HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical audio return (OAR)
- Supports optical sampling rate up to 48kHz
- Audio return channel (ARC)
- Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
- Receiver features 2 x USB 2.0 ports
- Fits in a standard UK standard double-gang back-box
Features
Product Description

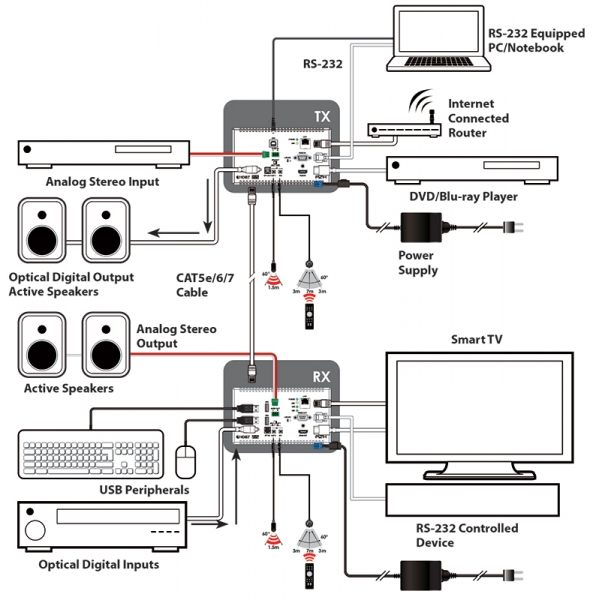

The PUV-2010RXWP UK Wall Plate Receiver supports 4K UHD video resolutions, HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN, and USB data signals. These signals can be simultaneously transmitted over a single CAT6a/7 cable up to 100m distance.
The PUV-2010RXWP provides advanced signal management and dedicated audio pathways using the latest HDBaseT 2.0 technology ensuring reliable results in the most demanding of installation environments.
The PUV-2010RXWP also features an OAR (Optical Audio Return) and ARC (Audio Return Channel) enabling audio from a compatible display to be routed back from the receiver unit to the transmitter.
The PUV-2010RXWP Receiver has the ability to act as a USB hub via its 2 x USB 2.0 ports.
