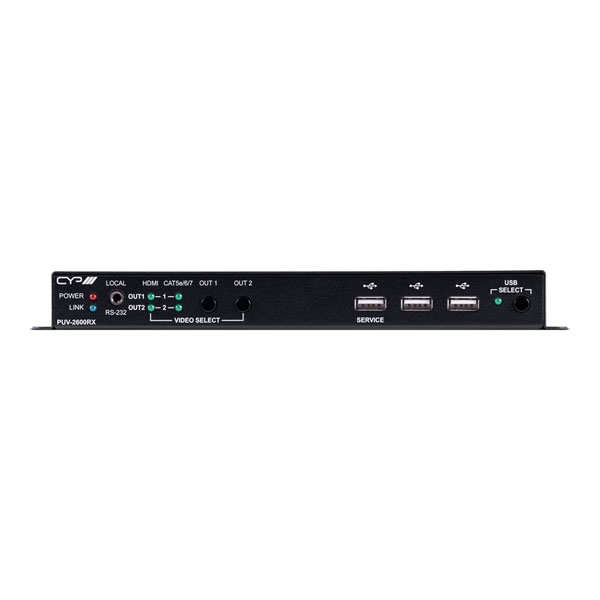

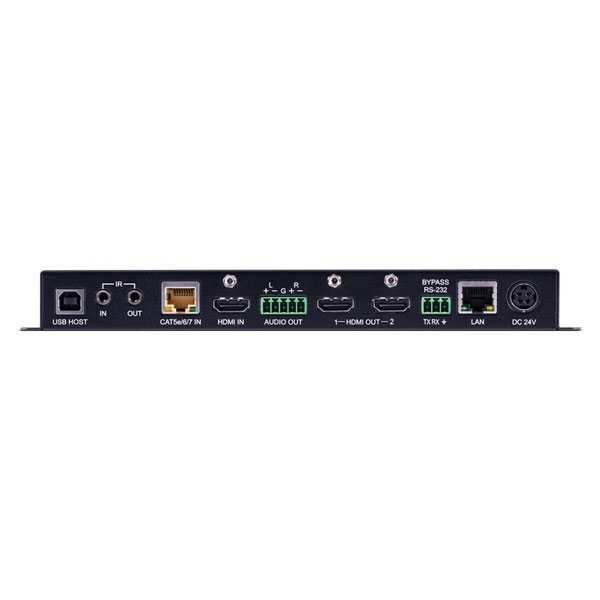

100m HDBaseT 2.0 Receiver (4K UHD/ PoH/ LAN)
PUV-2600RX is an HDBaseT 2.0 receiver designed for use in environments where wide flexibility in terms of inputs, outputs and control are needed.
- HDMI with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible
- HDCP 1.x & 2.2 compliant
- Selectable HDMI and HDBaseT inputs
- HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
- HDBaseT input supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit)
- HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
- 2×2 matrix switching (both HDMI outputs are independent)
- Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through)
- Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
- Balanced analog stereo audio breakout
- Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Features
Product Description

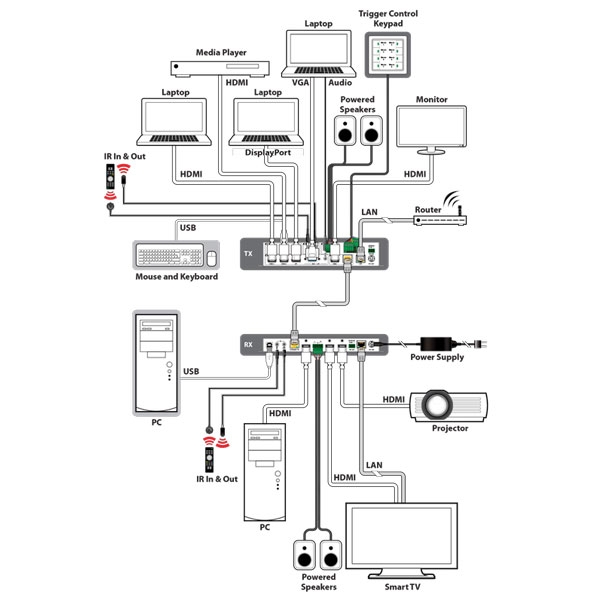

When the PUV-2600RX is paired with the EL-2600V, there are up to 3 switchable USB 2.0 host (Type B) connections available (with 2 on the transmitter and 1 on receiver) these connect up to 6 USB 2.0 (Type A) device ports (3 on the receiver, 3 on the transmitter) for a bidirectional, multi-source , highly flexible KVM or interactive display configuration.
The PUV-2600RX is able to provide 48V Power over HDBaseT (PoH) to the connected HDBaseT Transmitter such as the EL-2600V. This allows for greater flexibility when it comes to different installation situations/scenarios. The unit can be controlled via its front-panel controls, Telnet, RS-232 and WebGUI.
