1 HDMI TO 7 HDBASE T LITE SPLITTER (60M)

CYP12006

1 HDMI TO 7 HDBASE T LITE SPLITTER (60M)

CYP PU-1H7HBTPL 1 xHDMI to 7 x HDBaseT Lite Splitter with HDMI output bypass and power-over-cable (PoC). Signal transmission distance up to 60 metres.

Supports all v1.4 HDMI resolutions plus 4K
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Supports HDCP repeating and CEC functions
Supports 1080p distances up to 60 meters through CAT5e/6 cables
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports HDMI / IR
Supports 3D signals
Supports PoC (power over cable) providing power for the receivers
Supports 4K/2K & 4K UHD - CAT5e/6 = 35m & CAT6a/7 = 40m

Features

Supports all v1.4 HDMI resolutions plus 4K

HDMI, HDCP, & DVI compliant

Supports uncompressed video/audio up to 10.2Gbps

Supports HDCP repeating and CEC functions

Supports 1080p distances up to 60 meters through CAT5e/6 cables

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

Supports HDMI / IR

Supports 3D signals

Supports PoC (power over cable) providing power for the receivers

Product Description

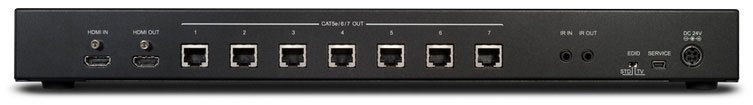

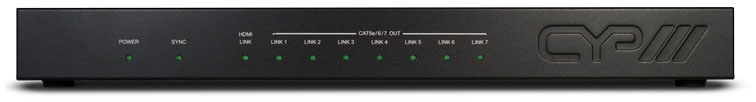

The CYP PU-1H7HBTPL allows a single HDMI signal to be distributed to 7 HDBaseT Lite outputs, simultaneously transmitting HD video, audio, IR and PoC (power-over-cable) over standard Cat5e/6/7 cable.

Using HDBaseT Lite technology, the 7 channels can be transmitted over distances of up to 60 metres each.

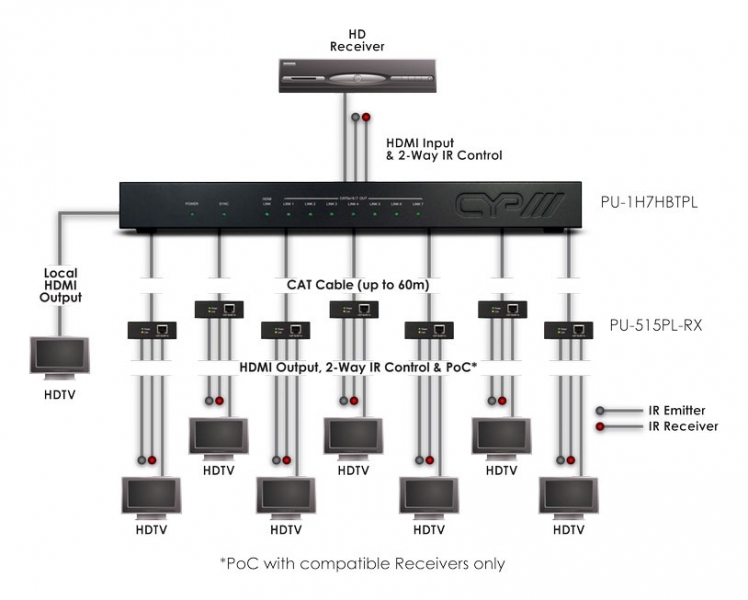

This professional HDBaset Lite 1 to 7 Splitter is ideal for both commercial and residential AV systems, allowing for a single HDMI source to be simultaneously displayed on 7 separate HD screens / TVs in different rooms or zones.

The PU-1H7HBTPL supports power-over-cable (also know as PoC or PoE) per HDBaseT channel providing power to each of the system’s HDBaseT Lite receivers (sold separately). This 1 in, 7 out Splitter also provides an additional HDMI output for increased flexibility (effectively providing an 8th output to a display adjacent to the Splitter), as well as the ability to cascade up to 5 devices for even more simultaneous screen connectivity.

Specified for use with CYP’s PU-515PL-RX and PU-515PLRX-2HCD receivers, powered from the PoC (power-over-cable) of the Splitter.

CIE’s award-winning team provide free and impartial expert advice on AV integration and installation:
CIE-Group’s award winning technical support team are able to provide full training, demonstrations and integration advice to system integrators, installers, specifiers and AV end users to ensure you benefit from the huge potential of this multi-channel AV Matrix and are fully confident in its installation, application and use.
Please call the CIE-Group customer services team on T. 0115 9770075 or email us at [email protected] to discuss any questions you may have with our AV technicians.

Specification
