HDMI to 3 HDBaseT LITE Splitter
The CYP PU-1H3HBTPL allows a single HDMI signal to be distributed to 3 HDBaseT Lite outputs, simultaneously transmitting HD video, audio, IR and PoH…
- 1 HDMI input to 3 HDBaseT Lite outputs
- Local HDMI bypass output
- 1080p up to 60m over Cat5e/6
- 4K up to 35m over Cat5e/6 or 40m over Cat6a/7
Features
- 1 HDMI input to 3 HDBaseT Lite outputs
- Local HDMI bypass output
- 1080p up to 60m over Cat5e/6
- 4K up to 35m over Cat5e/6 or 40m over Cat6a/7
- Power over Cable (PoC) to PU-515PL-RX receivers
- HDCP repeating and CEC
- Audio up to 7.1CH, Dolby TrueHD and DTS-HD
- IR pass-through
Product Description
The CYP PU-1H3HBTPL allows a single HDMI signal to be distributed to 3 HDBaseT Lite outputs, simultaneously transmitting HD video, audio, IR and PoH (Power-over-HDBaseT) over standard Cat5e/6/7 cable.
Using HDBaseT Lite technology, the 3 channels can be transmitted over distances of up to 60 metres each.

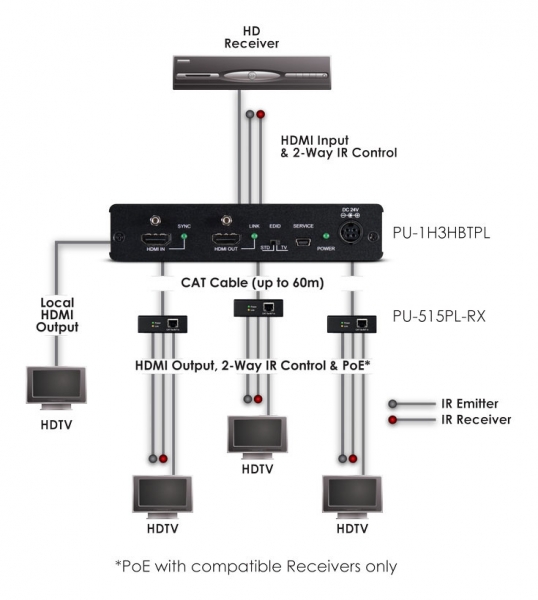

This professional HDBaset Lite 1 to 3 Splitter is ideal for both commercial and residential AV systems, allowing for a single HDMI source to be simultaneously displayed on 3 separate HD screens / TVs in different rooms or zones.
The PU-1H7HBTPL supports Power-over-HDBaseT (also know as PoH) per HDBaseT channel providing power to each of the system’s HDBaseT Lite receivers (sold separately).
This 1 in, 3 out Splitter also provides an additional HDMI output for increased flexibility (effectively providing an 8th output to a display adjacent to the Splitter), as well as the ability to cascade up to 5 devices for even more simultaneous screen connectivity.
Specified for use with CYP’s PU-515PL-RX receiver, powered from the PoH (Power-over-HDBaseT) of the Splitter.
